Quick Details:
Product Introduction :

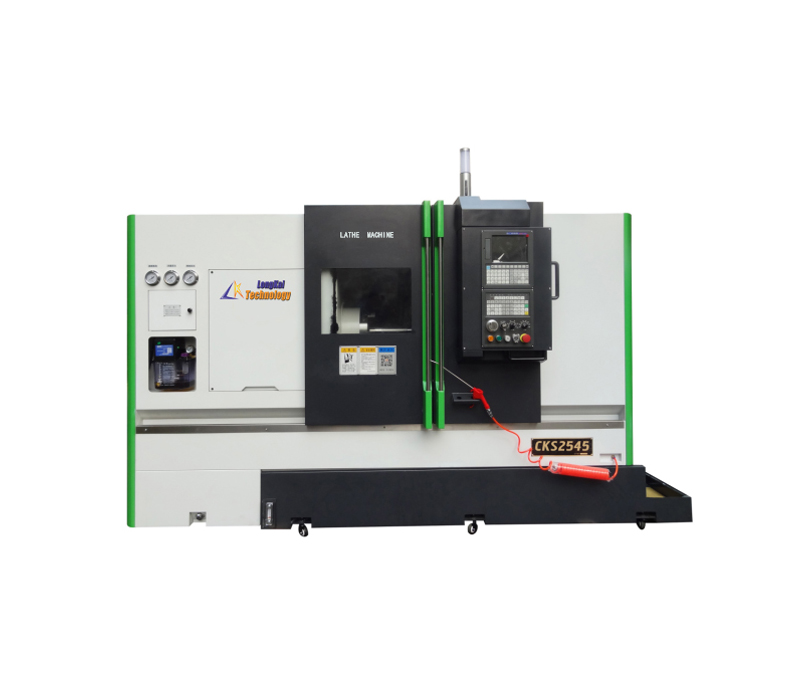

Lathe machine is matched with FANUC, Siemens or Guangzhou CNC system, with programmable controller (PC) and CRT display, linear and circular interpolation. The vertical and horizontal feed adopts AC servo motor and pulse encoder feedback. The width of bed guide rail is 600mm. The whole bed guide rail adopts high strength cast iron ultrasonic frequency quenching.
Product Features:
1. The bed saddle guide rail is close to the view, and the friction coefficient is small.
2. The main shaft can adopt frequency conversion stepless speed regulation and three support main shaft structure with good rigidity.
3. Wide cutting range, can process the outer circle and inner hole. End face, cutting groove, conical surface, chamfering, conical or cylindrical thread and arc surface.
4. Suited for cutting workpleces which have various shapes and sizes.
5. High machining precision and stable machining quality.
Techical Parameters:
Classification | Description | Unit | Spec | ||||
Main specifications | Swing over bed | mm | 500 | ||||
Processing range | Maximum turning length | mm | 450 | ||||
swing over carriage | mm | 250 | |||||
Bar diameter | mm | 65 | |||||
Max capacity | Disk parts | kg | 50 | ||||
Shaft parts | kg | 80 | |||||
Machining accuracy | X / Z axis repeated positioning accuracy | mm | 0.005/0.01 | ||||
X / Z axis positioning accuracy | mm | 0.01/0.02 | |||||
Man machine handling distance | Center height (center of spindle to bottom of bed) | mm | 980 | ||||
Spindle performance | Type and code of spindle end | A2-6 | |||||
Taper of spindle front end hole | Φ83、1：20 | ||||||
Diameter of spindle hole | mm | 79 | |||||
Single spindle Headstock | Spindle speed range | r/min | 35～4000 | ||||
Spindle speed series | stepless | ||||||
Spindle speed conversion | Automatic input | 1R / min direct command | Circumferential velocity | ||||
Manual input | 10 R / min direct command | Continuous control | |||||
Motor performance | Output power of main motor | 30 min Rating | kW | 15 | |||
Continuous rating | kW | 11 | |||||
X / Z motor torque | N.m | 15/10 | |||||
Hydraulic clamping | Standard chuck | Chuck diameter | inch | 8² | |||
Feed shaft performance | X-axis fast moving speed | m/min | 20 | ||||
Z-axis fast moving speed | m/min | 24 | |||||
X-axis linear guide | spec | 30 roller type | |||||
Z-axis linear guide | spec | 35 roller type | |||||
X-axis travel | mm | 135 | |||||
Z-axis travel | mm | 460 | |||||
Tailstock performance | Tailstock sleeve diameter | mm | 80 | ||||
Tailstock sleeve stroke | mm | 110 | |||||
Taper of taper hole of tailstock spindle | Mohr's cone No.4 | ||||||
Maximum thrust of tailstock sleeve | N | 8000 | |||||
Stroke of tailstock body | mm | 400 | |||||
Performance of power turret | Tool holder form | Servo horizontal 12 station | |||||
Turret rotation time: each station | sec | 0.1 | |||||
Tool size | Cylindrical knife | mm | 25×25×125 | ||||
Boring bar diameter | mm | Φ32 | |||||
Can cutter head be changed nearby | YES | ||||||
Size and weight | Dimensions | Length × width × height | mm | 2865×1647×1677 | |||
Machine weight | Total weight | kg | 3300 | ||||
