ZNC1060 Die Sinker EDM

Characteristics of Machine Tools

1. The structure of the machine is designed by computer analysis of tension, compression and reaction force, so as to ensure the mechanical precision forever.

2. The castings are cast with FC-35 resin sand. They are durable and have the same precision after natural wind and various treatments.

3. Machinery design uses computer aided design (CAD) to persist in processing the invariant structure of the machine body to ensure the processing accuracy.

4. The sliding track adopts V-shape and plane design. It slides lightly under heavy pressure and has excellent precision.

5. The working table surface is grinded by high-wave heat treatment, and the surface is not easy to wear.

6. Both X and Y axes adopt imported or equivalent double nut ball screw, which has light transmission and convenient use.

7. The spindle adopts linear sliding track, which ensures the precision and durability forever.

8. The trawler adopts imported Tiefron guide rail veneer.

Technical Indicators of Distribution Box

Maximum working current (>60A), maximum power consumption (<6KVA), maximum processing speed (>450mm/min)

Minimum electrode consumption less than 0.3% finest surface roughness Ra less than 0.3 M output voltage 90-260V

Taiwan's 17-inch famous LCD industrial computer imports dedicated circuit boards and world-renowned brand electronic components.

The standard configuration of spark machine is as follows

1. Z axle adopts Swiss-made or the same grade linear slide rail, Japanese NSK precision bearing.

2. Taiwan C7 X, Y ball screw, high precision Z-axis plastic steel wire rod.

3. Japanese original "Sanyo" servo motor. W-axis deceleration motor (1:25 60W or 90W).

4. Taiwan imports precision handwheels, dial sets, electrode chucks and Grand Full pumping motors.

5. Quartz lamps, fire extinguishers, liquid level switches, door seals, oil throats, high-pressure oil pipes, pressure gauges, etc. are all imported from Taiwan.

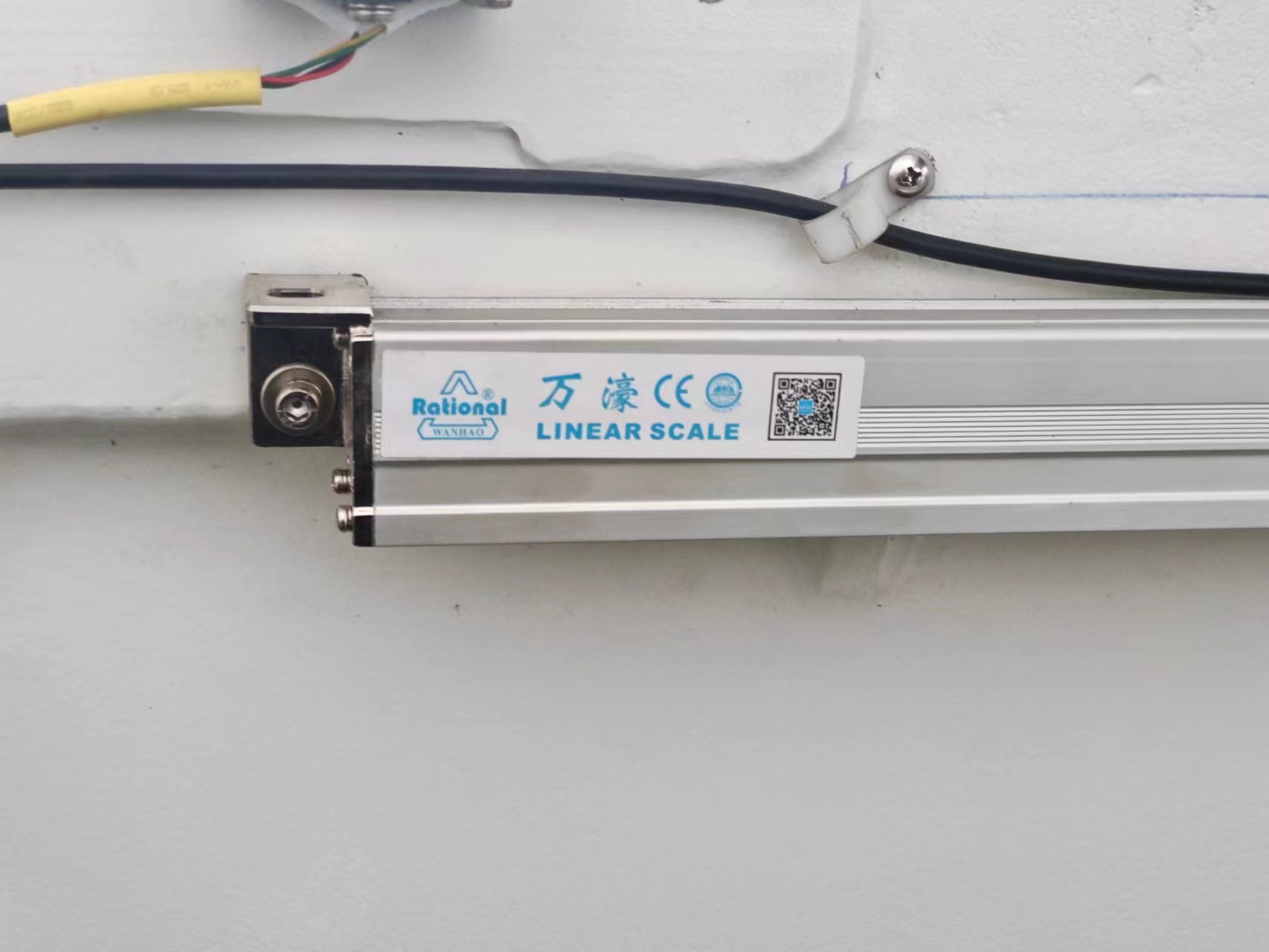

6. Precision optical ruler (triaxial).

7. Imported filters: 2

8. Machine tool paint is automobile paint, durable, beautiful and non-fading.

ZNC EMD Mechanical specification parameters
