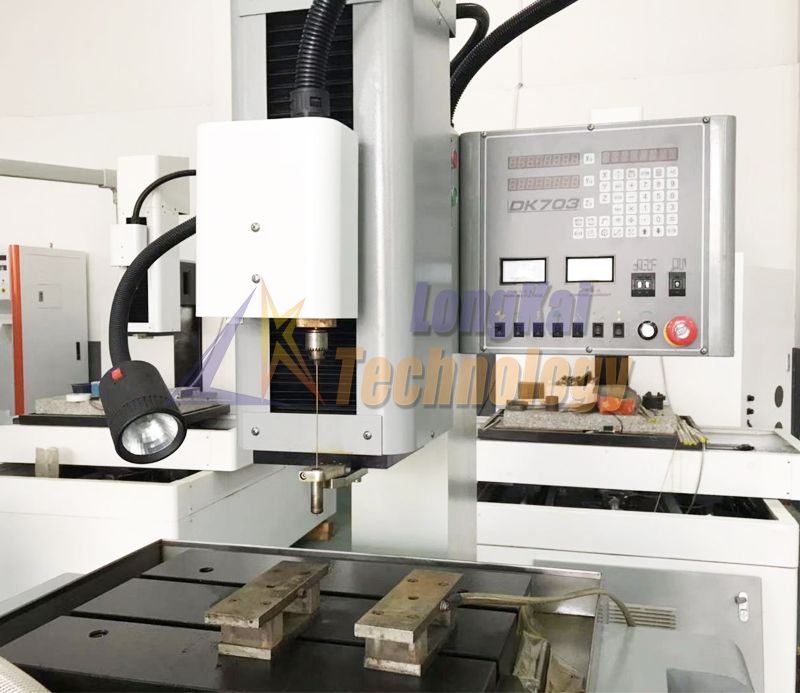

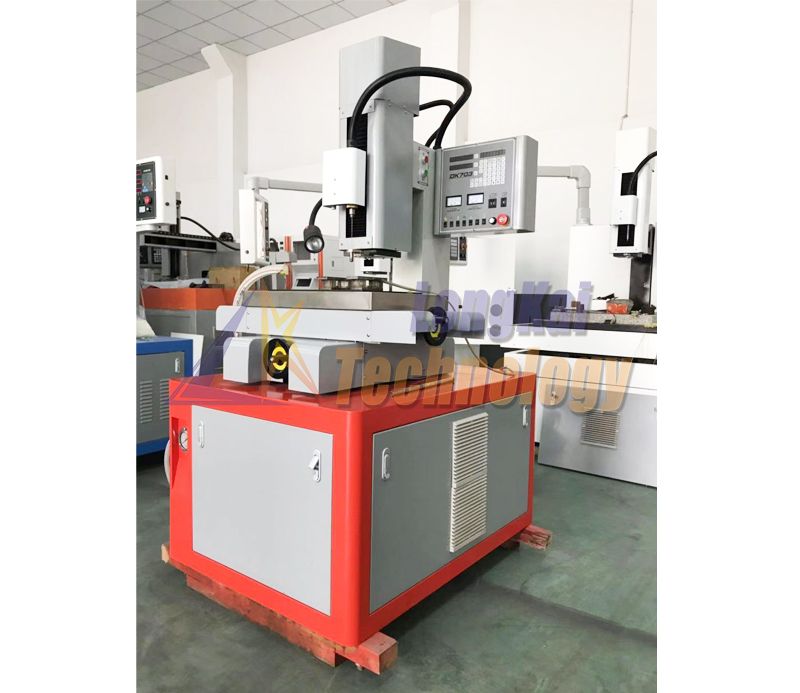

DD-703 EDM machine

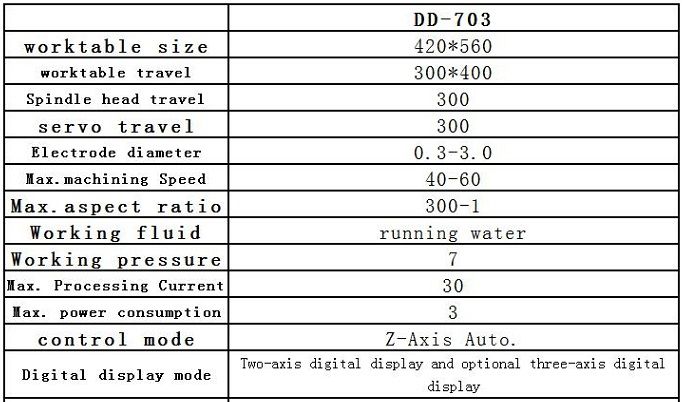

Quick Details:

Performance characteristics

1. Machining aperture 0.3-3.0 mm, maximum depth-diameter ratio can reach more than 300:1.


2. Processing speed can reach 5-40 mm per minute, servo stroke 300, can use super-long electrode tube, drug-saving electrode tube 15%.



3. Can process stainless steel, quenched steel, cemented carbide, copper, aluminum and other conductive materials



4.It can penetrate directly from inclined plane and surface.


5.Servo lifting adopts double linear guide rail and electric lifting, which ensures the processing accuracy and speed of products.


6.The spindle adopts two-speed control mode, which can double the speed of back-off and closely track the processing time, so as to realize efficient and stable processing of fine electrodes.


7.Taiwan rotary head processing is stable and leak-free, equipped with high-pressure water pump

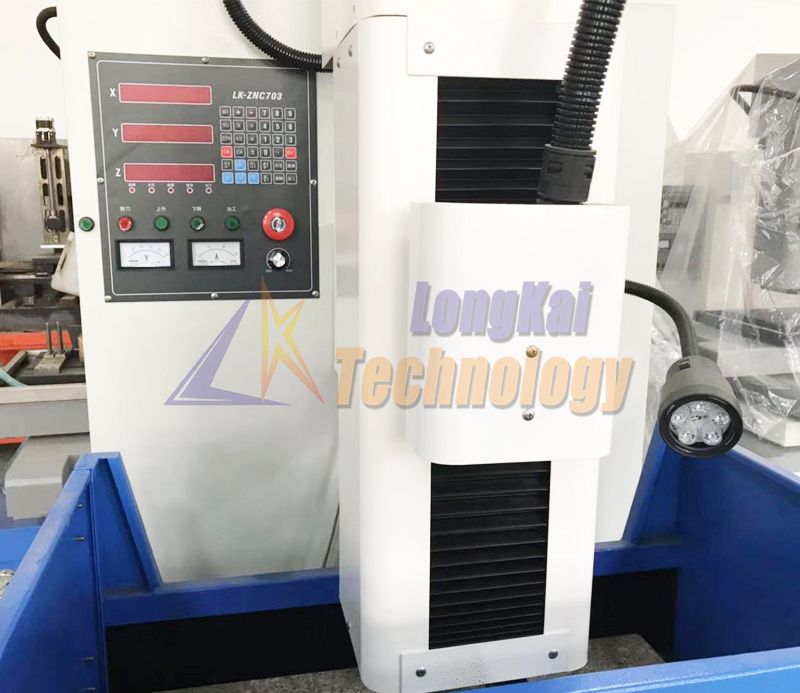

8.The X and Y axes of the worktable are equipped with grating digital display, and the operation is accurate.

DD-703 EDM machine
